Kawasaki:Kawasaki Crankshaft Direction:Vertical Horsepower:14.5HP FS481V:FS481V MPN:FS481VS01S Fuel Type:Petrol condition:New

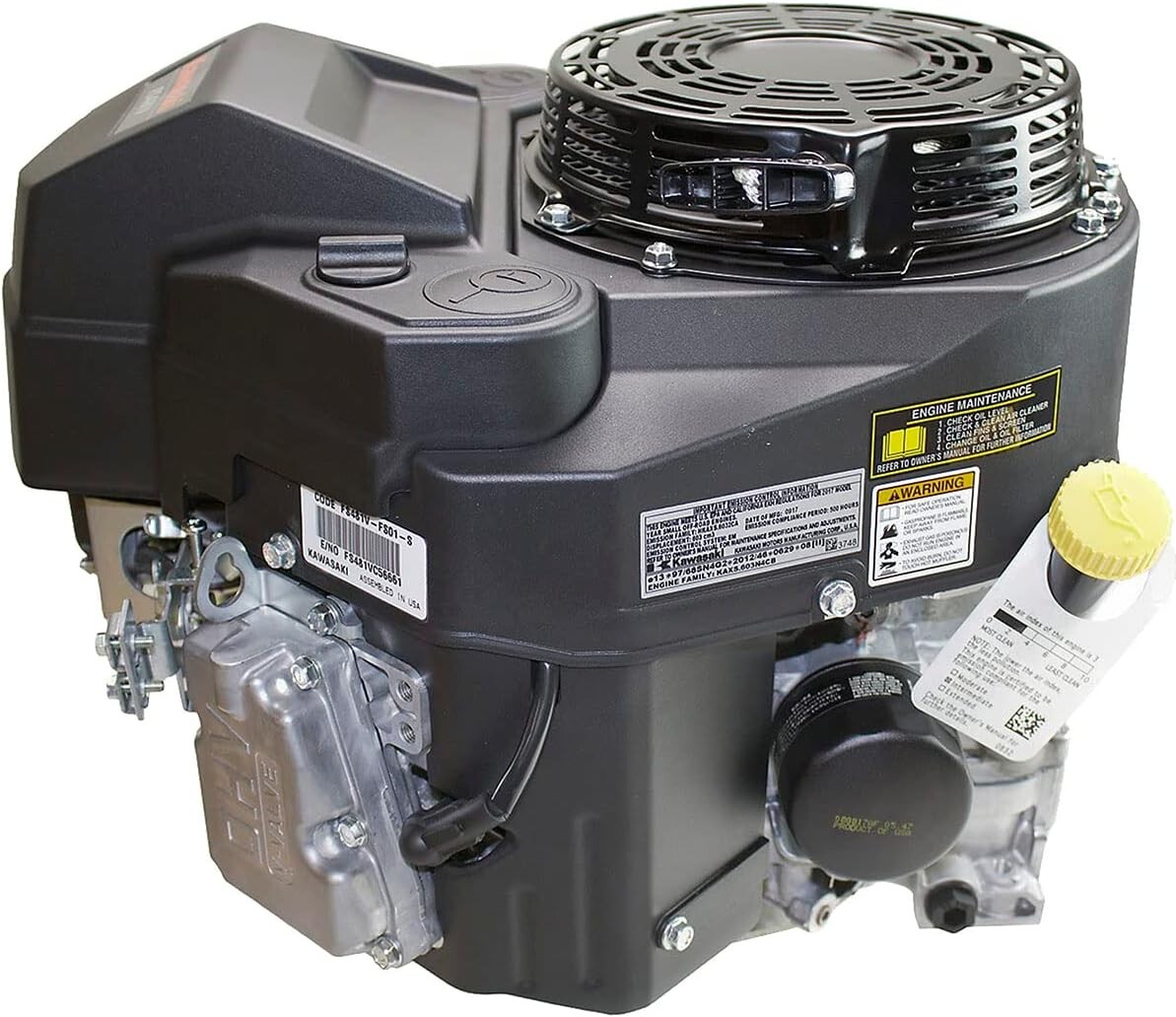

This is a Genuine Kawasaki FS481V-S01-S 14.5 Engine PTO Size: 1 x 5/32″ FS481V
Same as / Replaces: FS481V-HS01-S, FS481V-JS01-S
14.5hp 1” X 5/32” Recoil Start & Clutch Coil
Replaces 17 FS481V Recoil Engine Specs
Replacement for Recoil start FH381V, FH430V, FH451V, and FH480V
Features:
- Overhead V-valve
- Integrated clean out ports
- 90° V-twin
- Pressurized lubrication system
- Electronic spark ignition
- Automatic compression release
- Internally vented carburetor
- Rotating grass chopper screen
- Dual element air filtration system with reinforced primary filter
- Cast-iron cylinder liners
| ENGINE SPECIFICATIONS | |
| ENGINE BRAND | Kawasaki |
| MODEL NUMBER | FS481V-S01-S |
| WARRANTY | 3 Years |
| POWER OUTPUT | 14.5 HP @ 3600 RPM |
| TORQUE | 30.9 lb-ft @ 1800 RPM |
| CRANKSHAFT ORIENTATION | Vertical |
| CRANKSHAFT TYPE | |
| CRANKSHAFT DIAMETER | 1″ (25.4mm) |
| CRANKSHAFT LENGTH | 3-5/32″ (80mm) |
| END TAPPED SIZE | |
| KEYWAY | |
| ROTATION DIRECTION | Counter-Clockwise |
| STARTER TYPE | Recoil |
| IGNITION SYSTEM | Electronic |
| CARBURETOR | Single Barrel |
| NUMBER OF CYLINDERS | Two |
| CYLINDER BORE | Cast Iron Liners |
| AIR CLEANER | Dual Element |
| OIL CAPACITY | 1.8 qt |
| FUEL | Gasoline |
| FUEL PUMP | Pulse |
| GOVERNOR SYSTEM | Mechanical |
| CONTROLS | Dual Cable |
| BORE x STROKE | 2.9″ x 2.8″ |
| COMPRESSION RATIO | 8.1 : 1 |
| CHARGING SYSTEM | Clutch Coil |
| MUFFLER | Not Included |
| FLYWHEEL | |
| ENGINE NOTES | Gen 2 air box design with clean out ports |
| REPLACES | FS481V-S23-S, FS481V-S26-S, FB460V-ES05, FC420V-FS15, FH480V-CS24-R, FH541V-AS38-R, FS481V-AS04-R, FS481V-DS06-R, FS481V-GS18-R, FS481V-FS21-R, FS481V-CS26-S, FS481V-BS26-R |
|
COMMON APPLICATIONS *This engine is commonly used for, but not limited to, these applications* |
Lawn & Garden Tractors, Stand On Mowers, Wide Area Walk Behind Mowers, Zero Turn Mowers |
|
COMMON EQUIPMENT MANUFACTURERS *This engine is commonly used on, but not limited to, these equipment manufacturers/brands* |
Ariens, Auburn Consolidated, Excel, Exmark, Doosan Bobcat, Ferris, Giant Vac, Great Dane, Husqvarna, KMC, Little Wonder, MTD, Ransomes, Scag, Snapper, Toro, Walker, Worldlawn, Wright Manufacturing |
Please verify the original Kawasaki Engine part number in your owner’s manual or on the appropriate parts diagram of your model for correct location and fitment of this item.
