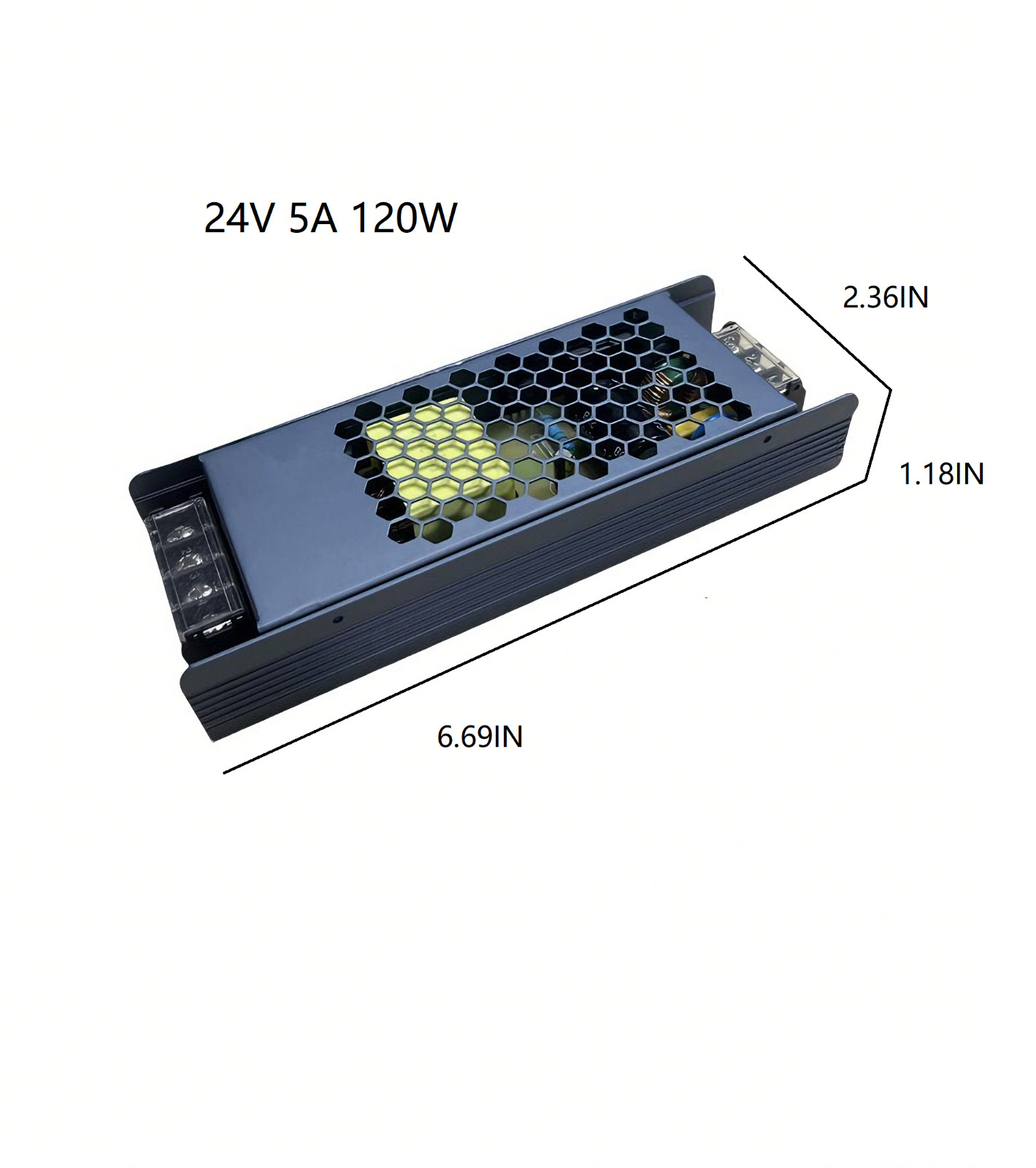

AC 110 264V To DC 12 24V Switch Power Supply Transformer For 24W-360W LED Strips

AC 110 264V To DC 12 24V Switch Power Supply Transformer For 24W-360W LED Strips

$15.99 Buy It Now or Best Offer
free,30-Day Returns


Seller Store wfyb (246571) 99.7%,

Location: San Diego, California 921**, US
Ships to: US,
Item: 376752663135

24V 5A 120W:24V 5A 120W wfyb:wfyb Compatible Brand:Generic Output Amperage:2A 5A 10A 15A 20A 30A Input:AC110-264V 50-60Hz Type:12V 24V Power Supply Adapter Color:Black Compatible Model:Generic Material:Metal MPN:Y.H.124/Y.H.112 Compatible Product:LED Strip,3D Printer Output Voltage:12V/24V condition:New


AC 110 264V To DC 12 24V Switch Power Supply Transformer For 24W-360W LED Strips

* US Seller and free shipping from San Diego, CA
* New and 100% Brand
* Widely used For Industrial Automation devices, LED Strips, 3D Printers and more
* High performance and Multiple protection
Details

Shell Material
Metal case / Aluminum base
Protection
Over Voltage / Overload / Over Temperature / Shortage  Protection
Safety Compliance
CCC / FCC / CE
Input Voltage
AC100V-265V for 120W/250W/360W items
Frequency
50-60Hz ±5%
Voltage Accuracy
±5%
Max Ripple Noise
＜200mv,Silent mode
Output Voltage
24V
Output Amperage
5A 10A 15A
Working Temperature
-20℃~60℃
Storage Temperature
-20~85℃
Working Humidity
20~95% Non-Condensation
Storage Humidity
10~95%RH
MTBF
≥316.2K  hrs,MIL-HDBK-217F(25°C)
Attention
IN-DOOR USE ONLY!!! (Professional installation is highly  recommended)
Q&A
Q: “Which PSU do I need? “
A: Suppose your LED light strip has 50 LEDs per meter,with each LED consuming 0.2W of power. Therefore, the power per meter is 10W.If your strip is 2 meters long, then 20W of power is needed. We recommendselecting a power supply with a minimum of 20W (it’s advisable to leave a 20%headroom when selecting a power supply, so a 24W power supply would be optimalin this case).
Q: “Which wire to which connector? “
A: Pay attention to the label of each connector on thePSU:
Input:
L: For the Live wire,usually in Black or Red
N:For the Neutral wire, usually in White
G/⏚: For the Ground wire,usually in Green
Output:
  +V: For the Positive terminal of the strip
  -V: For the Negative terminal of the strip
Adjustment:
  ADJ: Rotate to adjust the output voltage
Turn down any of your powers. Always Safety First!
Q: “How to switch the input voltage? “
A: The default input voltage is 220V. To select the 110V,go find the switch located on the side of the PSU(usually a label with an arrowis there to help), then use a small screwdriver to simply toggle the switch tothe output voltage that satisfies your need.
Q: “How to test the output voltage? “
A: To accurately measure the output voltage, you can usea digital voltmeter (DVM), also known as a multimeter. Make sure to select thevoltage range suitable for your measurement and correctly connect the measurementprobes to the positive and negative terminals of the output power source.Ensure stability during the measurement process to obtain accurate readings.
Q: “The output voltage value is not so accurate,what can I do? “
A: Typically, the output voltage fluctuates around 5% ofthe rated output voltage. If the output voltage differs from your desiredvoltage, you can adjust the ADJ knob until you are satisfied with it.
Q: “I do need a PSU with a different output type,where can I find more? “
A: We have plenty of PSUs with various output voltagesand power ratings. Come visit our store to search more. Always a perfect fitfor you! Enjoy your shopping!
You’ll Receive
1Pcs 24V Switch Power Supply Adapter For LEDStrip

SKU
PSU Type
Shipping Weight
Net
Y.H.124-5-TK
24V 5A 120W
9.9oz
8.9oz(2-PM Padded Envelope;10-Medium Box)
Y.H.124-10-TK
24V 10A 250W
1lb,1.4oz
16.4oz(2-PM Padded Envelope;8-Medium Box)
Y.H.124-15-TK
24V 15A 360W
1lb,2.3oz
17.3oz(2-PM Padded Envelope;10-Medium Box)
Y.H.112-2-TK
12V 2A  24W
6.6oz
5.6oz(2-PM Padded Envelope;10-Medium Box)
Y.H.112-5-TK
12V 5A  60W
7.9oz
6.9oz(2-PM Padded Envelope;8-Medium Box)
Y.H.112-10-TK
12V 10A 120W
10.3oz
9.3oz(2-PM Padded Envelope;10-Medium Box)
Y.H.112-20-TK
12V 20A  250W
1lb,1.3oz
16.3oz(2-PM Padded Envelope;10-Medium Box)
Y.H.112-30-TK
12V 30A  360W
1lb,2.3oz
17.3oz(1-PM Padded Envelope;5-Medium Box)
